Aluminum diamond plate 4000 series
1 to 5 bars aluminum diamond plate is a type of lightweight metal stock with a regular pattern of raised diamonds or lines on one side, with the reverse side being featureless.
During production, the pattern is applied to the plate by forming rolls which are pressed onto the plate with a large force. In doing so, the bottom of the plate remains plain. It is not possible to emboss the aluminium plate subsequently.
Due to the diagonally finned structure, the plate becomes slip-resistant which is why it is also suitable for use outdoors and in wet areas. In addition to the finned structure, there are many other shapes and patterns which provide the same characteristics.
Depending on the type of plate, 1 to 5 bars are arranged next to each other, forming a checked pattern. It is differentiated between 1 bar(diamond), 2 bar, 3-bar, and 5-bar patterns.
| Product | Checkered Aluminum Plate |
| Pattern design | Big Five Bar,Small Five Bar,Diamond, Lentil Patterm Etc. |
| Quality standard | Mill Finish, No Stains, Without Rough Selvedge,Cold Rolled, Hot Rolled, Totally free from defects like white rust,adge damage, camber, dents, holes, break lines, scratches. |
| Production Process | Cold Rolled, Hot Rolled |
| Alloy series | 4A03 4A13 4A17 4004 4032 4043A 4047A |
| Temper | O,H14,H16,H18,H22,H24,H26,H32,H34,H112 T4,T651 Etc. |
| Thickness | 0.7mm - 6.0mm |
| Width | 500mm - 1600mm |
| Package | Export wooden pallets, Craft paper, Anti-Blushing Agent. |
| Delivery Time | Future goods: 20-30 Work days, Ready Stock:7-10 days. |
| Application | Refrigerator, air conditioner, car, platform, packing tube, screen frame, various hanging beam, table leg, handle, cable slot and cover, chair, etc. |
| Kind Attention | Specification can be customized as the customer's requirements. |
According to the different patterns of aluminum plate:
A: Compass aluminum diamond plate:
non-slip aluminum plate, which has the same effect as five bars, but it is not often used.
B: Orange peel aluminum checkered plate is divided into:
classic orange peel aluminum diamond plate, variant orange peel aluminum diamond plate (also called bug pattern). Its surface shows an orange peel pattern, so it can also be called an orange peel aluminum diamond plate. It is a series of pattern products commonly used in refrigerators, air conditioners and packaging.
C: Five bars aluminum diamond plate:
Five bars non-slip aluminum plate is also known lancet-shaped diamond plate. It has good anti-slip ability, and is widely used in building (floor) platform design and other aspects. Because the pattern on the surface of the aluminum plate is arranged in parallel with five uneven patterns, and each pattern has an angle of 60-80 degrees with other patterns, this pattern has excellent anti-slip performance. This kind of aluminum plate is usually used in China as a kind of non-slip material, which has a good anti-slip effect and is cheap.
D: The lenticular aluminum diamond plate:
It is a commonly used style of anti-slip aluminum plate, which has good anti-slip effect. It is mainly used in carriages, platforms, skids in cold storage and workshops, and skids in elevators.

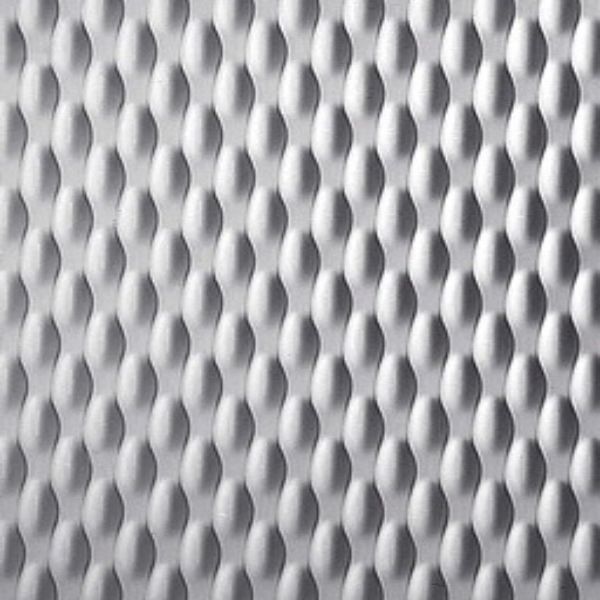

E: Aluminum spherical diamond plate:
It can also be called aluminum semi-spherical patterned sheet. The surface shows a small spherical pattern, just like small pearls, so this aluminum sheet can become a pearl-shaped aluminum sheet. It mainly used in outer packaging. The appearance is relatively beautiful. Due to the special pattern, the strength of this aluminum plate is much higher than other pattern series.
F: Other aluminum diamond plate:
wave aluminum diamond plate, water ripple aluminum diamond plate, corrugated aluminum diamond plate (also can be aluminum tile), rattan aluminum diamond plate, three-dimensional triangle aluminum diamond plate, strip aluminum diamond plate, cobblestone aluminum diamond plate, triangle strip aluminum diamond plate, butterfly aluminum diamond plate and so on.
G: Diamond-shaped aluminum diamond plate:
packaging pipes or outer packaging commonly used.
